Terrazzo
Artful Synthesis
Boost your creative opportunities. Different sizes of highly expressive decorative grainings meld with the colored backgrounds to form unique compositions.
Ideal for museums, galleries and stores
Prestigious floor finishes that can be creatively designed and deliver a robust surface that is hard to scratch and as good as completely resists wear-and-tear.
Ideal for museums, galleries and stores
Prestigious floor finishes that can be creatively designed and deliver a robust surface that is hard to scratch and as good as completely resists wear-and-tear.
OMNIA
The high durability of PANDOMO Terrazzo Omnia is guaranteed even with thin layer thicknesses (from 10 mm), opening up new design possibilities for architects.
BASIC
Mineral additives from your very own region, such as Rhine River sand, create a vibrant, seemingly natural texture and feel.
Shores
Terrazzo

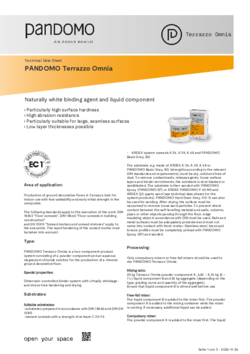

Omnia
Product properties
12 Hour(s)
90 Minute(s)
Yes

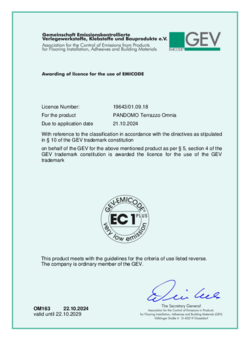

EC 1 PLUS = very low emission PLUS
None
None
Bag containing 20 kg net (component A)Bucket containing 20 L net (component B)
Can be stored for approx. 12 months in the original sealed container in dry, frost-free rooms.
A1-fl
AR 0,5
EC 1 PLUS = very low emission PLUS
QS 4 (höchste QS)
erfüllt die Anforderungen
keine Zuordnung möglich
≤ 0,10 %
| Component A | Component B | Consistency |
|---|---|---|
| 20 kg powder | 5 - 7 L Liquid component | Mixing ratio of material and aggregate 1 : 1 to 1 : 1.5 |
Fusion
Terrazzo

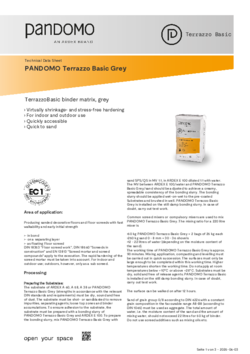

BASIC
Product properties
PANDOMO Terrazzo Basic Grey can be used to create grey decorative floors that are ready to lay quickly on insulation layers, separating layers and in combination with regional aggregates.
The basis of PANDOMO Terrazzo Basic Grey consists of an extremely low tension binder matrix and a regional aggregate from the respective project area. In contrast to conventional Terrazzo floors/screeds, PANDOMO Terrazzo Basic Grey is comparatively quick and easy to apply as it can be machine conveyed and pumped. After installation, it is sanded and polished several times and finally impregnated. It can be put into operation on the fourth day.
8 - 12 Hour(s)
90 Minute(s)
1,10 kg/l
2,10 kg/l
Yes

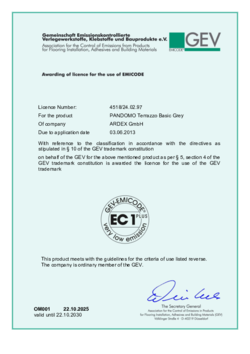

EC 1 PLUS = very low emission PLUS
GHS05 "corrosive", signal word: Danger
None
Bag with 25 kg net
Close opened containers tightly.Can be stored in dry rooms for approx. 12 months in the original sealed container.
ZP1 = cementitious product, low chromate
A1-fl
EC 1 PLUS = very low emission PLUS
ZP1 = cementitious product, low chromate
QS 4 (höchste QS)
EPD-DBC-20220217-IBF1-EN
erfüllt die Anforderungen
keine Zuordnung möglich
0.488 kg/kg Product
0.0879 m³/kg Product
| Time | Bending tensile strength approx. | Condition |
|---|---|---|
| After 1 day | 4 N/mm² | At a mixing ratio of 1 : 5 in parts by weight |
| After 7 days | 4.5 N/mm² | At a mixing ratio of 1 : 5 in parts by weight |
| After 28 days | 5 N/mm² | At a mixing ratio of 1 : 5 in parts by weight |
| After 28 days | 6 N/mm² | At a mixing ratio of 1 : 4 in parts by weight |
| Time | Compressive strength of approx. | Condition |
|---|---|---|
| After 1 day | 25 N/mm² | At a mixing ratio of 1 : 5 in parts by weight |
| After 7 days | 35 N/mm² | At a mixing ratio of 1 : 5 in parts by weight |
| After 28 days | 40 N/mm² | At a mixing ratio of 1 : 5 in parts by weight |
| After 28 days | 50 N/mm² | At a mixing ratio of 1 : 4 in parts by weight |
| Material requirements | Condition |
|---|---|
| 3.3 Kg powder per m² and cm | Per m² and cm at a mixing ratio of 1 : 4 |
| Component A | Component B | Component C | Consistency |
|---|---|---|---|
| 25 kg powder | 125 Kg sand | 6 - 11 l water | Depending on the moisture of the sand (grain size 0-8 mm), with a mixing ratio of 1 : 5 |
Wuppertal, Deutschland
mal-anders, G. Erdmann, Wuppertal
Istanbul, Turkey
Bilgehan Şenel Architect
Weimar, Germany
heike hanada - laboratory of art and architecture
Hamburg, Germany
Nieto Sobejano Arquitectos
Gladbeck, Germany
ch-quadrat architekten
Münster, Germany
pbr Architekten
Köln, Germany
Waechter + Waechter Architekten

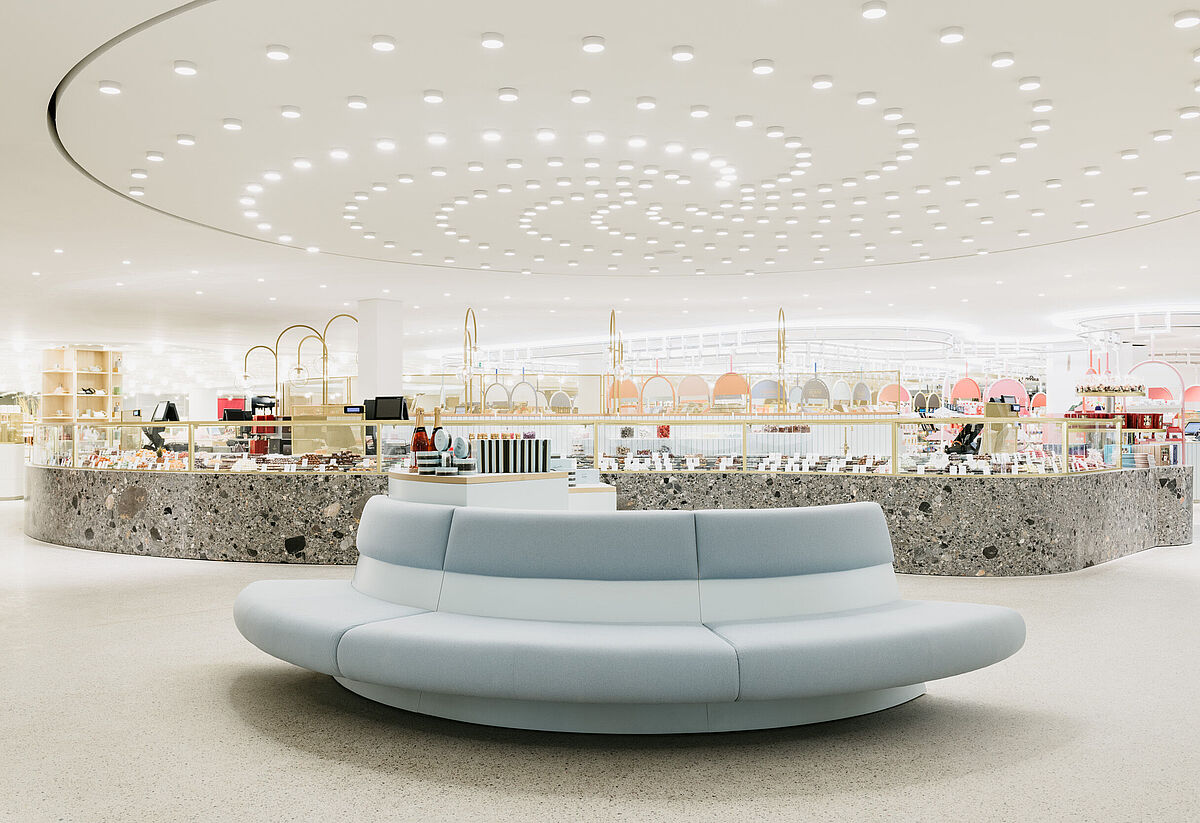

Berlin, Germany
studio karhard
Potsdam, Germany
Thomas Kroeger Architekten, Berlin
